28 Circuit Classic-Plus Customizable Bulkhead Harness

Key Features:
  • Brand: Painless Performance

$524.99

SKU PPP-20104
Brand
Add to wishlist

Description

Part Number: 20104

Make: Universal

Model: Universal

Engine: Carbureted or Any Stand Alone Fuel Injection

Trans.: Any



American Made

Looking for connectors to be included as well as a newly updated design? Check out the PRO Series Harness! CLICK HERE

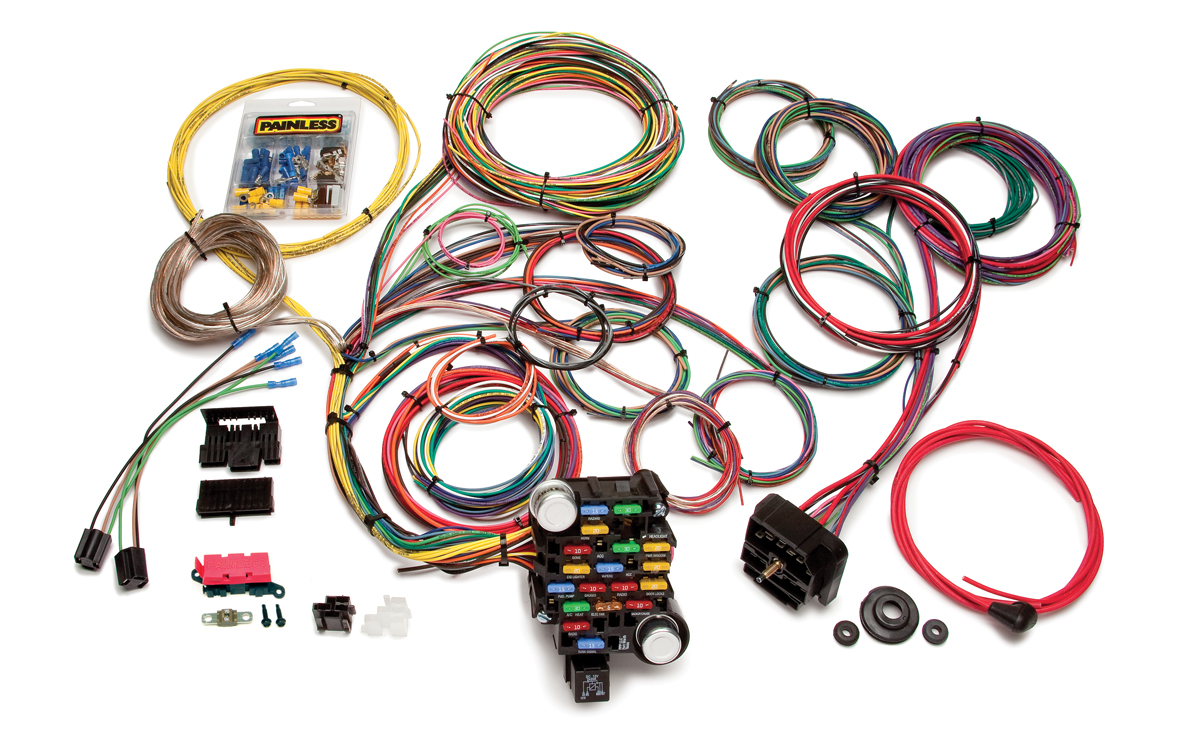

This 28 circuit universal kit is great for hot rod or street rod builds, but you’ll find that it’s easily adaptable to almost any vehicle and has enough length to handle full size and muscle cars. To pass through the firewall, a bulkhead connector is utilized, giving you the ability to disconnect the engine/headlight section wiring at the firewall. The provided to-scale peel and stick template makes firewall trimming easy. This harness comes with open ended ignition switch wires that can easily be adapted to any ignition switch out there. Included with this harness are the following parts; a GM engineered fuse block & bulkhead connector; GM turn signal connectors; pre wired plugs for the headlights & dimmer switch; and each wire is printed with the circuit identification as well as using GM color codes for easy installation.

Specs:

Number of Circuits: 28 Circuits – 18 Fuses w/ Horn Relay & Maxi Fuse

Harness Length: Universal

Fuse Type: Blade & Maxi Fuse

Firewall Passthrough: Bulkhead Connector

Color Code Based:  Universal

Circuit Designations: Printed on Wires



This harness includes circuits for:

  1. A/C & Heat
  2. Accessory
  3. Accessory / Cigarette Lighter
  4. Accessory / Trunk Light
  5. Backup Lights
  6. Brake Lights
  7. Charging
  8. Cruise Control
  9. Dome Light
  10. Electric Choke
  11. Electric Fuel Pump
  12. Emergency Flashers
  13. Fan Relay Activation Power
  14. Fused Power Source
  15. Headlights
  16. Horn (Relay)
  17. Ignition Coil
  18. Instrument Panel Lighting and Gauges*
  19. Park Lights
  20. Power Antenna
  21. Power Door Locks
  22. Power Windows
  23. Radio/Clock (Constant and Switched)*
  24. Starting
  25. Tail Lights
  26. Third Brake Light
  27. Turn Signals
  28. Wipers

* Including Wires For:

Fuel Gauge

Oil Gauge

Speakers

Tachometer

Temperature Gauge

Voltmeter
